Have you ever found yourself torn between a Wheeled Tractor vs. Crawler Tractor? It’s a common dilemma for many farmers and agricultural professionals. While wheeled tractors are known for their agility and faster road speeds, they can struggle in muddy or uneven fields. On the other hand, crawler tractors excel in tough terrains but often come with challenges in transportation and maneuverability. Choosing the right type isn’t just a matter of preference—it can directly impact your work efficiency, fuel costs, and long-term maintenance.
The core differences between wheeled and crawler tractors each have their strengths: wheeled tractors rely on tires, offer flexible steering, and move quickly between fields—ideal for flat terrains and paved roads. Crawler tractors, on the other hand, use tracks for ground contact, provide stronger traction, lower ground pressure, and perform better in muddy, hilly, or complex terrain.
But when it comes to specific farming scenarios, how do you determine which one better fits your needs? Let’s dive deeper into the key differences.
Contents
I. What Are the Core Differences Between Wheeled and Crawler Tractors?
1. Structure and Drive Mechanism
Wheeled tractors are powered by tires, with steering achieved through front-wheel pivoting, and a compact body structure. Crawler tractors use continuous tracks, with steering achieved via speed differences between the two tracks, and generally have a more rigid body.
Tip: Tire selection for wheeled tractors should match the working environment—radial tires are wear-resistant and suited for long-distance transfers, while bias-ply tires offer better grip for fieldwork. For crawler tractors, track pitch is important: smaller pitch for precision tasks, larger pitch for rough terrain.
2. Field Performance
Wheeled tractors have a small turning radius (approx. 3–5 meters), making them ideal for frequent turns within small plots, though they may slip under heavy loads. Crawler tractors provide 15%–20% more traction than wheeled tractors of the same power, with better tilling depth consistency.
Minnuo crawler tractors feature an intelligent power distribution system that adjusts engine output and track speed according to workload. This system keeps tilling depth error within ±0.8 cm, making them especially suitable for deep plowing and heavy-duty operations.
3. Power and Fuel Economy
Wheeled tractors are lighter and more fuel-efficient for light to medium tasks like seeding or transport. Crawler tractors are heavier and provide stable power for heavy loads but may consume more fuel during light operations.
Tip: Adjust engine RPM based on implement needs—reduce RPM for wheeled tractors during light tasks to save fuel; maintain rated RPM on crawler tractors under heavy loads to avoid power shortages.
4. Terrain and Environmental Adaptability
Wheeled tractors are suitable for flatlands and paved roads, with transfer speeds of 20–35 km/h. However, they may get stuck on slopes over 15° or in muddy areas. Crawler tractors offer low ground pressure (0.05–0.1 MPa) and can handle slopes up to 25°, as well as wetlands and rugged terrain.
Minnuo crawler tractors utilize adaptive track tensioning technology, adjusting track tension in real time through sensors. This reduces track derailment by 90% on rocky slopes and muddy fields, significantly improving adaptability over similar models.
5. Cost and Maintenance
Wheeled tractors generally cost 10%–20% less than crawler tractors of the same power. Their common wear parts (tires, steering components) are easy to replace, with maintenance costs around $50–80 per session. Crawler tractors have longer-lasting parts (track links, rollers), but single maintenance events may cost $120–200.
Tip: When calculating total cost of ownership, include fuel, maintenance, and resale value. Although crawler tractors have a higher upfront cost, their 5-year total investment could be lower.
6. Handling and Operator Comfort
Wheeled tractors are easy to operate, suitable for beginners, but can be bumpy at high speeds. Crawler tractors offer greater stability during field operations but require the operator to adapt to track-speed differential steering.
Practical Tip: For extended working hours, choose models with suspension seats and sealed cabins to reduce operator fatigue.
7. Service Life and Resale Value
Crawler tractors typically last 10–15 years, about 2–3 years longer than wheeled models. Regular maintenance of key components (engine, transmission) helps improve resale value—e.g., changing engine oil every 500 hours to avoid excessive wear.
II.Wheeled Tractor vs. Crawler Tractor： How to Choose the Right Tractor Based on Your Needs
1. According to Plot Characteristics
| Category | Scenario | Recommended Model | Reason |
| Plot Size & Terrain | Small or scattered plots (<30 acres) | Wheeled Tractor | Agile turning, easy to maneuver, great for plot-to-plot transitions |
| Large, contiguous plots (>100 acres), flat terrain | Wheeled Tractor | High transfer efficiency, supports wide implement operations | |
| Hilly, sloped, or low-lying land | Crawler Tractor | Strong passability, avoids getting stuck or sliding | |
| Soil Type | Sandy or loamy soil | Wheeled Tractor | No special ground pressure required, adaptable |
| Clayey or swampy soil | Crawler Tractor | Low ground pressure, reduced soil compaction, better passability |
2. According to Operation Type and Load
Light-duty tasks (seeding, fertilizing, weeding, short-haul transport):
Use 50–70 HP wheeled tractors with 2–3 meter-wide implements.
Heavy-duty tasks (deep plowing ≥30 cm, heavy harrowing, dozing):
Use 80–120 HP crawler tractors. Ensure tractor power exceeds implement requirement by 10–15% (e.g., 35 cm deep plow requires 100+ HP).
Multi-purpose operations:

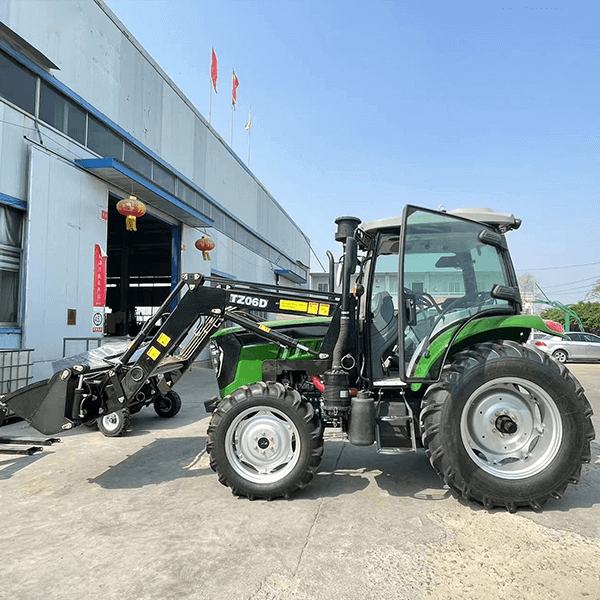

If you need to take into account both tillage and transportation, you can choose a wheeled model with additional counterweight, or the Minnuo TZ series model with quick-change working devices.
3. According to Usage Frequency and Transport Needs
High-frequency use (>1000 hours/year):
Choose crawler tractors for better durability and low failure rates.
Low-frequency use (<500 hours/year):
Choose wheeled tractors for lower cost and easier off-season maintenance.
International or long-distance transport:
Crawler tractors require dedicated trailers. Check transport dimensions and customs compliance in advance.
4. According to Budget and Maintenance Capacity
Tight budget (<$15,000):
For a 50-70 horsepower wheeled model, consider Minnuo’s entry-level NB series, which offers excellent value for money.
Ample budget ($15,000–30,000):
Choose 80–120 HP crawler tractors for better long-term return.
Limited maintenance capacity:
Prioritize brands with wide after-sales networks—Minnuo has over 500 service centers across six continents, offering 24/7 tech support and global parts warranty.
III. Pitfalls to Avoid When Choosing a Tractor
Policy and Subsidy Compliance
Understand import duties and environmental standards (e.g., EU CE certification, US EPA compliance). Minnuo tractors meet major international standards and we assist with subsidy applications.
Fuel and Parts Compatibility
Ensure compatibility with local fuel quality (e.g., high-sulfur diesel requires wear-resistant engines).
Choose models with readily available spare parts to avoid future shortages.
Future Expansion
Reserve hydraulic and PTO interfaces to allow future attachment of planters, harvesters, etc.
Allow 10–20% power margin in case of land expansion.
Second-Hand Equipment Considerations
When buying used, inspect key wear components (engine block, track chains). Prioritize models with maintenance records.
IV. Conclusion
Wheeled Tractor vs. Crawler Tractor：there is no “best” tractor—only the one that fits your needs best. Focus your decision around four key dimensions: plot characteristics + operation type + budget + maintenance capability.
For flatland and light tasks, go for wheeled tractors.
For hilly terrain and heavy work, opt for crawler tractors.
For high-frequency, durability-focused usage, choose crawler.
For low-frequency, budget-conscious needs, choose wheeled.
Still unsure about which tractor to choose? Feel free to contact Minnuo’s global support team. Our agricultural machinery consultants will provide tailored solutions based on your specific conditions—field type, operations, and budget—to help you select the tractor that truly fits your needs.
